Omnia [passive]

Omnia.

Experience the unaltered tone of your favorite guitar.

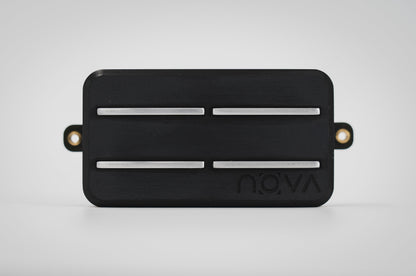

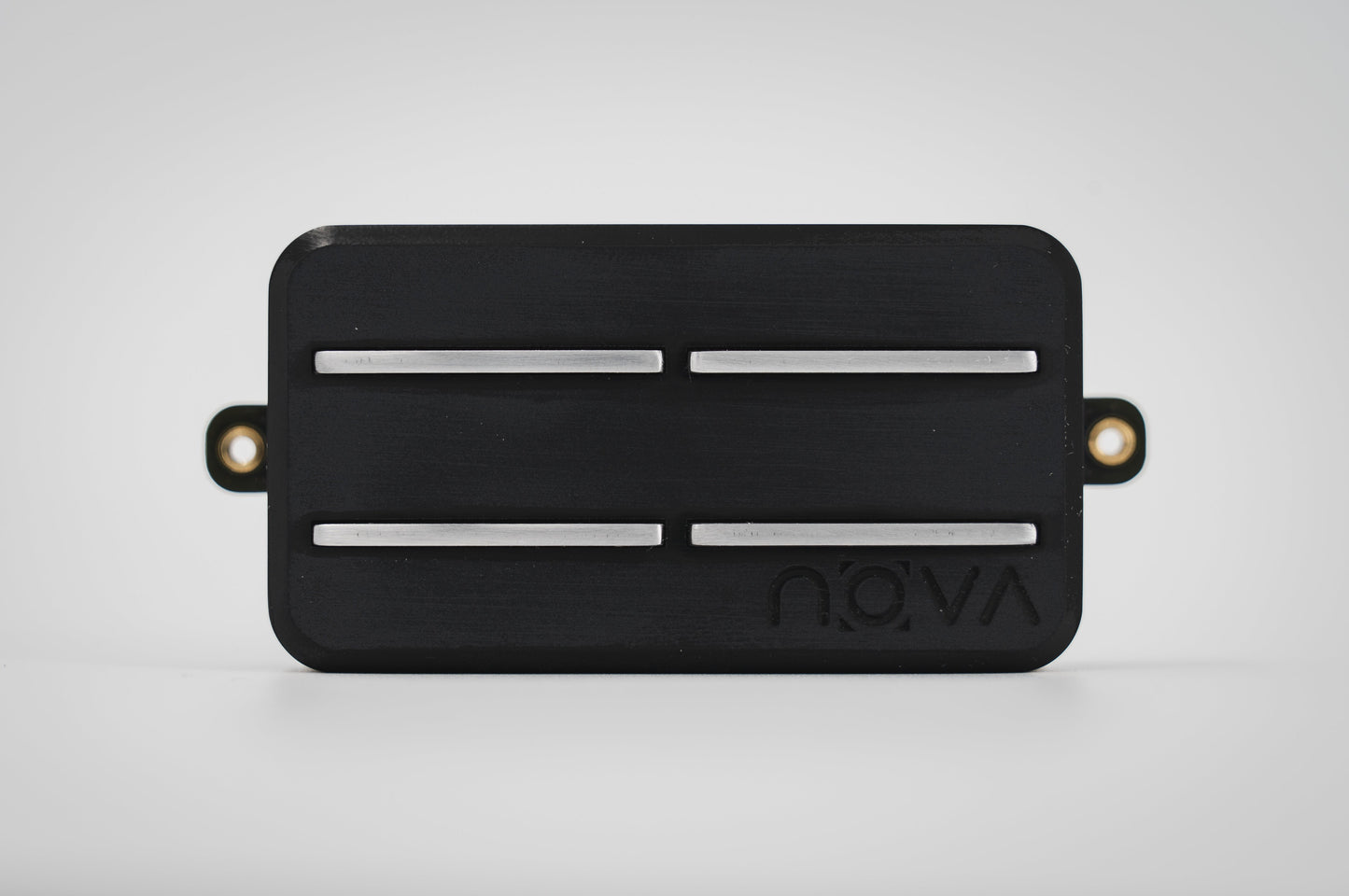

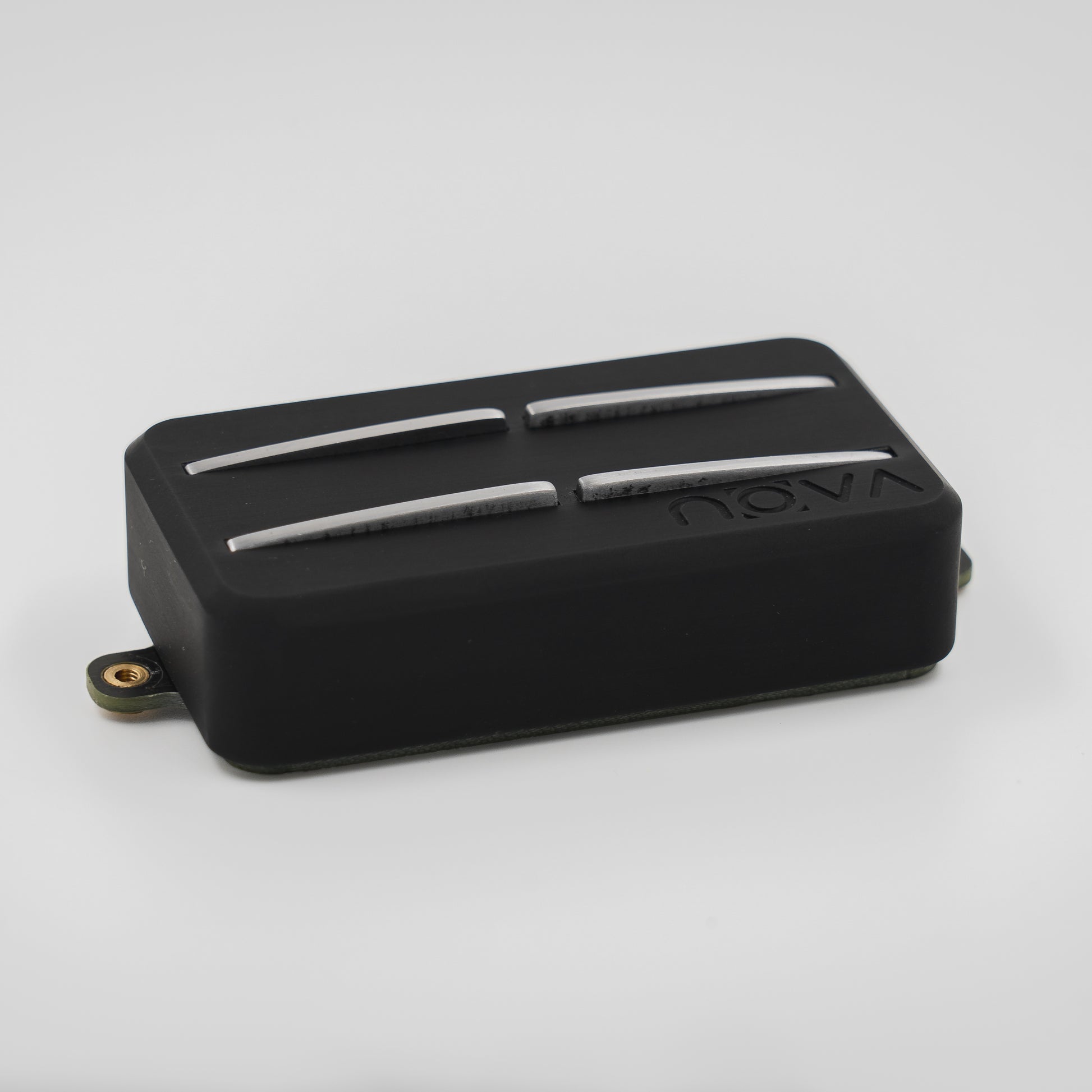

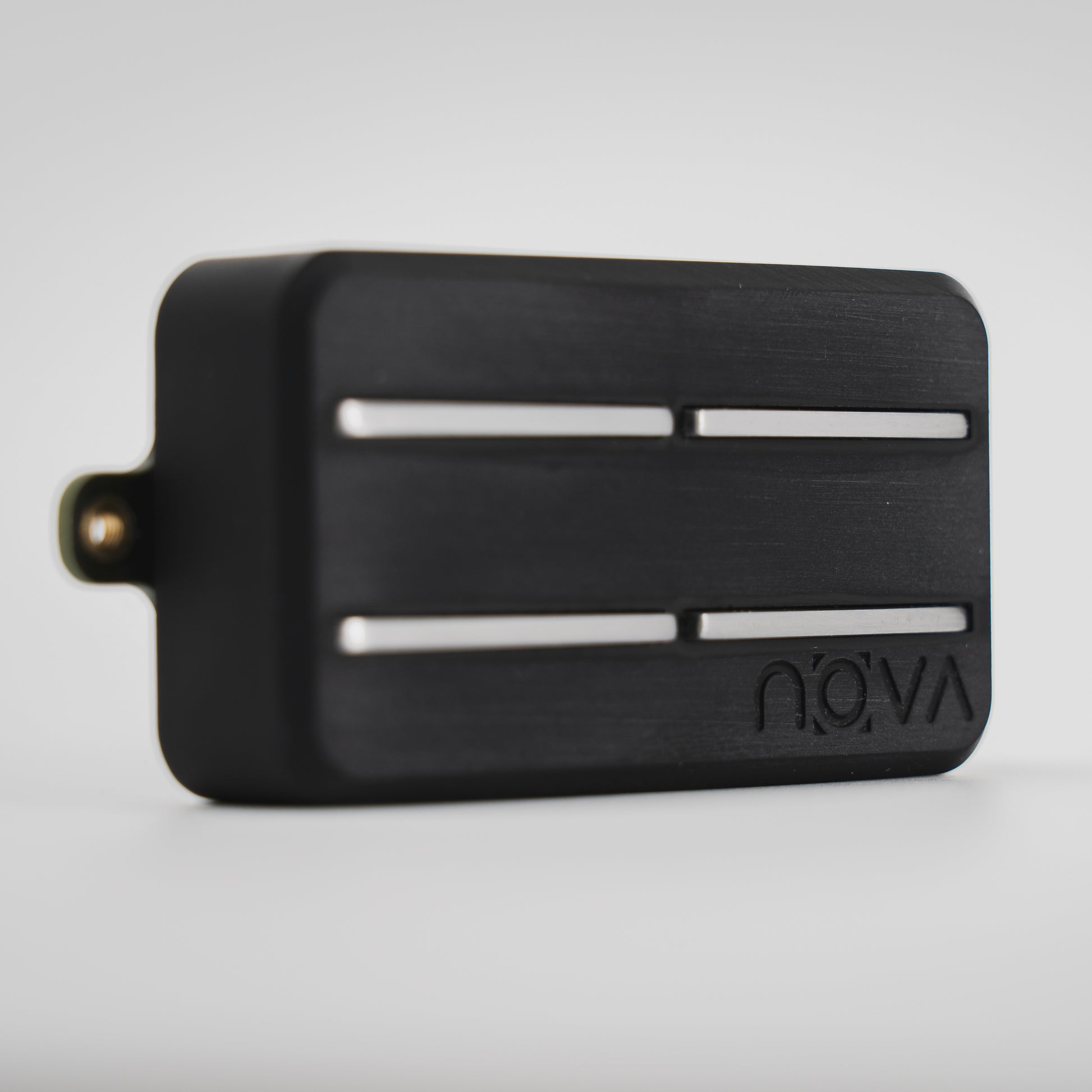

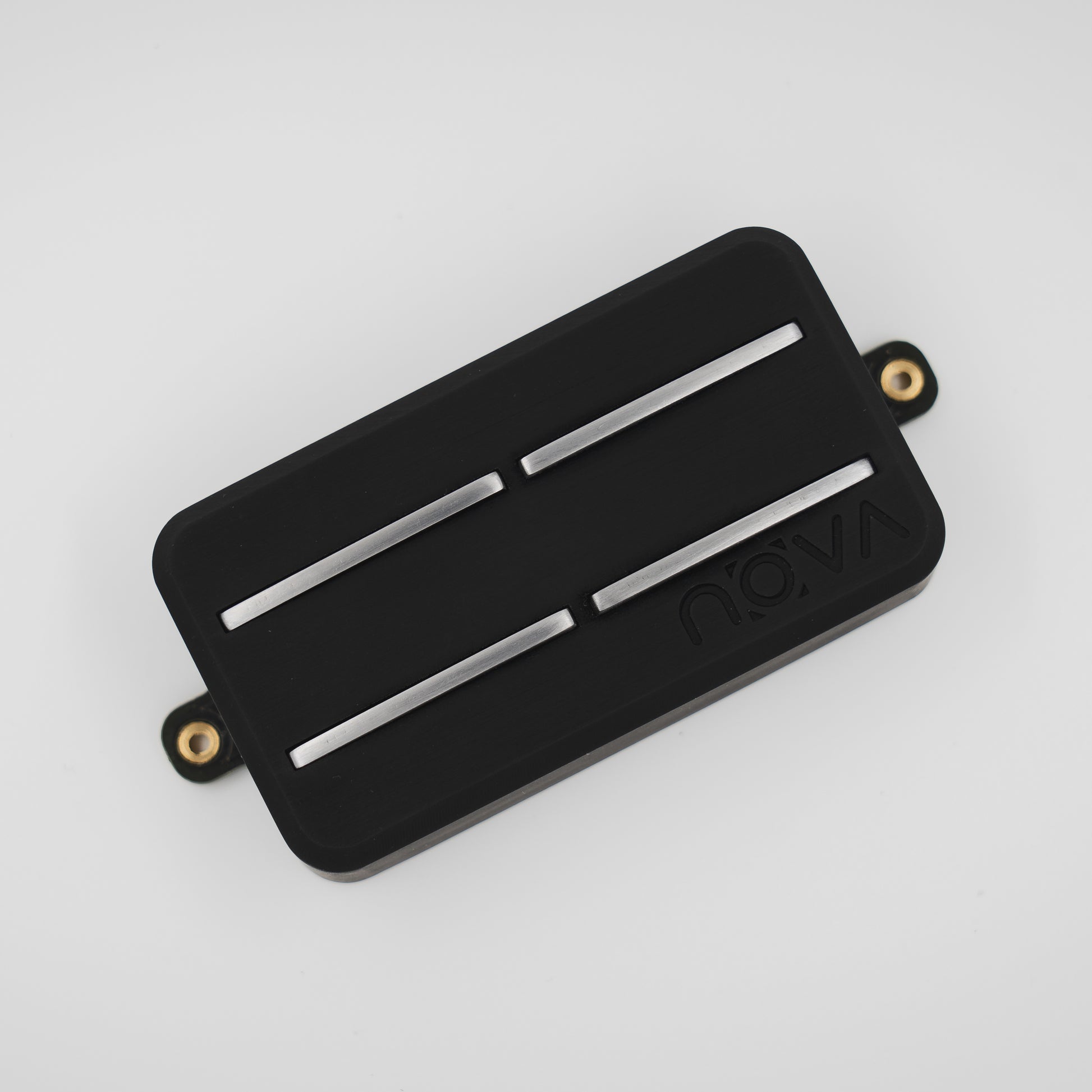

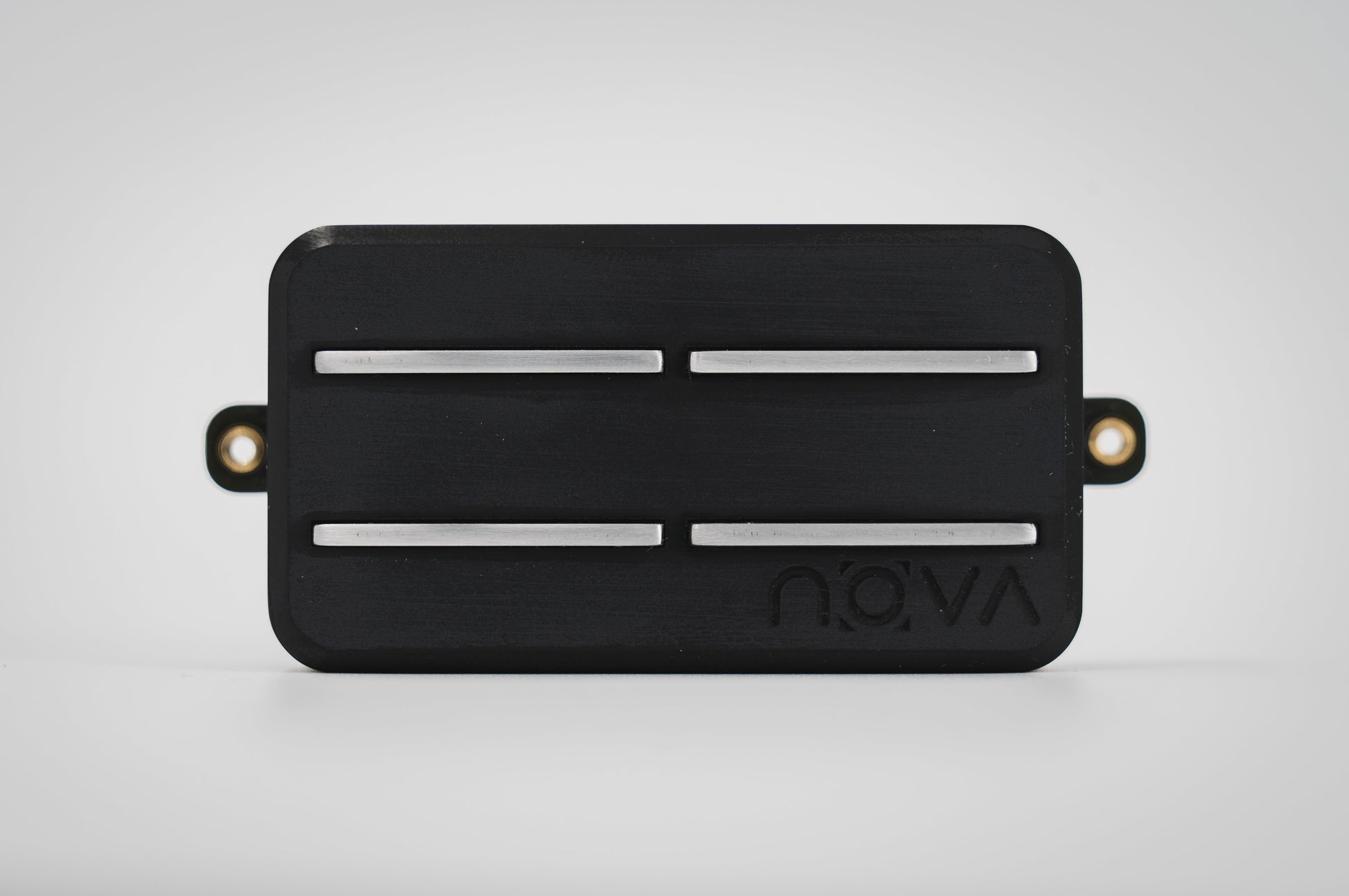

The Omnia is the ultimate guitar pickup with four coils and rails, made for maximum clarity, transparency, versatility and balance.

With a neodymium bar magnet in the bridge and well-matching AlNiCo8 in the neck, it offers unparalleled dynamic range and versatility for any playing style. Its advanced technology delivers hum cancelling in any wiring without compromising tone and less of a volume drop when split than conventional pickups.

Perfect for all tunings and tone shaping options.

It's retrofit compatible with most conventional humbuckers and covers all common 6 string spacings.

Some trivia for the geeks:

The base plate is a PCB with meshed ground plane to get shielding with minimal eddy current losses.

The bobbins and other internal parts are PLA printed with a precision FDM printer while the cover is SLA printed from UV and moisture resistant resin.

The blades are custom laser cut from soft iron which is an ideal coil core due to high inductivity and permeability as well as contributing to a balanced sound.

Neodymium as a bridge magnet was my choice due to the highest dynamic range among all magnet types I've tested so far, and AlNiCo8 presented the best match for the neck to add some warmth.

The two coil pairs are wound asymmetrically - perfectly hum cancelling in any configuration, but adding a tiny bit of that tasty single coil twang to the prominent humbucker tone.

Including:

2x M2,5 screws and springs for mounting

a high quality shielded four conductor cable by Sommer featuring pin connectors to the pickup to fascilitate mounting without putting stress on the cable

Instructions, additional information and wiring diagrams

Disclaimer

This is a preorder - Shipping may take up to 3 weeks, but I'll try to get them finished asap. I also believe in transparency - feel free to contact me to get informed about the process of your order.
